Printing Great Color:
Profiling your Printer with Colorvision PrintFIX PRO

A crucial and too frequently overlooked step in every photographer's workflow is printing images with great color. Until now the process of profiling a printer has been somewhat arcane and very expensive. High end profiling packages like Profilemaker, when combined with the needed hardware, can cost several thousand dollars.

Inexpensive scanner-based profiling packages have not done that good a job and are often no better than the stock profiles provided by the printer maker. Profiling services can be great, but you need a new profile for each printer + paper combination which gets time consuming and expensive.

Colorvision has changed all that with this week's release of PrintFIX PRO. PrintFIX PRO, including the needed measuring device (technically the Datacolor 1005 Spectrocolorimeter), is aggressively priced at $499 or $599 for the Suite version which includes monitor profiling.

Powerful and Versatile

Datacolor Spectrocolorimeter measuring a PrintFIX PRO target

PrintFIX PRO is very versatile, capable of producing RGB profiles for a wide array of printers, inks and papers. To test PrintFIX PRO on both a photo paper and an art 'paper' I created profiles for our Epson 4000 and both InkjetArt micro-Luster and fast dry Canvas. Both produced excellent results, visibly better than the stock profiles for those paper types.

Using PrintFIX PRO: The Wizard Interface

The first thing you notice about PrintFIX PRO is that the interface is a "no-brainer" wizard. Thanks to extensive beta testing and a relentless drive to make the product simple, it is the easiest to use profiling package we've ever tested here. The wizard walks you through ensuring your printer settings are correct, printing test image to ensure your printer is operating correctly and your media type is set correctly and then finally printing the test target.

One nice feature of PrintFIX PRO is that each test target you print has all the relevant information printed along with it. If you do any extensive amount of experimenting with ICC profiles you can easily wind up with a whole stack of targets on slightly different papers or with slightly different settings so it is great to have them all pre-labeled for you.

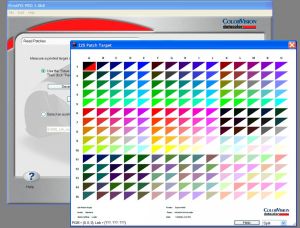

Target Measuring Screen

It is then a simple but somewhat tedious matter to read back the target information using the Spyder2PRO. The screen for reading the data back shows you the "ideal" color right next to the measured color so you can easily see whether you're on the right target patch. You have the option 150, 250 and 729 patch targets for your profiles. I used the 250 patch targets for my testing. The 150 patch profiles are most likely to work with current printers, but if it has issues you can use the larger patch targets--which of course take a little more time to measure.


PrintFIX PRO produces RGB-based ICC profiles. It can't be used to produce CMYK profiles, but that isn't an issue for most photographers profiling their own inkjet printers or even profiling the printers you might send an image to at your digital lab. You can create either standard 8-bit profiles or 16-bit per channel "high-bit" profiles for optimum accuracy. The 16-bit profiles are quite large though.

Profile creation options

You also get many other options for tweaking your profile to your needs. It's easy to think that a "perfect" profile shouldn't need tweaking, but each of us has different ways of perceiving, and each final print is viewed under different lighting conditions, so even a "perfect" profile might need adjusting to your personal preferences and viewing conditions.

In particular I like that you can adjust for the brightness of the viewing conditions right in the profile customization screen. Often I wind up adding a quick Curves layer in Photoshop to my images to mimic this behavior, but generating a separate profile simplifies my workflow.

SIDEBAR: Are your prints "too dark"?

A common complaint from photographers is that their prints are too dark compared to their monitors. Often this issue stems not from an inaccurate profile but from the conditions in which they view their prints. Remember that our monitors and printer profiles are usually optimized for "daylight" viewing conditions. That includes the amount of light--not just the color.

If you take those same prints and actually walk out into a bright sunlit day usually they will look stunning. If they do then the problem is not that your profile is inaccurate, but that you need to make adjustments for the lower light levels often found indoors--or you need to display your work with dedicated lighting. Personally I use color balanced lamps from Solux for that purpose.

Rendering Intents

Colorvision recommends the Saturation intent for most purposes, but since historically I've had best results with my desktop Epsons using Relative Colorimetric I used both intents and found them both excellent and virtually indistinguisable for many of my images when printing to the Epson 4000. Presumably that is because the Epson has sufficient gamut to handle the images in question more or less "as is" without a lot of gamut mapping. But you should certainly experiment with both rendering intents and may choose different ones for different images. In some cases I found that I didn't like what the Saturation intent did to dark reds in my desert images so I've settled on just using Relative Colorimetric for my E4000 images.

Deciding if you need a Printer Profiling Package

When color printers were first available the provided drivers and profiles (if any) were downright awful when it came to producing accurate color. But as competition has heated up and the printer manufacturers have become more color savvy, their free profiles have improved dramatically. Now, if you are happy using inks and paper from your printer manufacturer you can quite likely find a profile that will work for you for free. But if you want to use other inks or papers to save money or achieve some different effects, then you're on your own and need to generate a profile.

What makes PrintFIX PRO different?

Most printer profile packages are either very expensive and require equally expensive hardware or are low cost and either use your scanner or an inexpensive colorimeter and have only provided mediocre profiles. The expensive packages do a great job but can cost many thousands of dollars. The inexpensive packages are better than not using a profile but as printer vendors have started supplying reasonable profiles for their printers and papers the inexpensive packages don't really add much value anymore. PrintFIX PRO provides an impressive middle ground. By providing a relatively low cost dedicated hardware device to measure the patches on your printed target and relying on their volume distribution to lower the price of the software Colorvision has provided a high quality printer profiling package for only $499 including hardware.

The hardware provided with PrintFIX PRO is also unique. Low-end profiling packages have traditionally relied on your scanner to read back test patches. This can be very inaccurate and means that your printer profile is at best as good as your scanner. Plus your scanner isn't really built to read printer test targets, so these packages are not really that useful. Expensive packages have used a full spectrum spectrophotometer (which can measure the radiation at each frequency separately). PrintFIX PRO uses a "Spectrocolorimeter" which measure the light in 6 different bands which result in accurate measurements. This makes for more accurate profiles with tricky inks and papers in particular.

PrintFIX PRO is quite a bit different than Printfix. It is a stand-alone application (not a Photoshop plug-in), with a new measuring device & is much more powerful and versatile. Many people had issues getting Printfix to generate good profiles. I'd suggest viewing PrintFIX PRO as a new product, because it is, and not let historical experience worry you too much. Note that there is also a Printfix Plus which works without the measuring device, but I didn't try to use the product in that mode.


The Suite version of PrintFIX PRO includes Spyder2 Pro for monitor profiling. It sells for about $599, only $100 more than the printer only version. If you need to update your monitor profiling solution to support LCDs and are going to purchase PrintFIX PRO the Suite is a great value.


The Bottom Line

Comparing PrintFIX PRO profiles with stock profiles shows that it can improve your profiles and therefore your printing results. And of course if you need to use non-standard inks or papers you'll want you're own profile creation tool to get the most out of them (or you'll need to purchase custom profiles for each combination). When I compared the results from PrintFIX PRO profiles to those I generated with Gretag ProfileMaker 4.1 and an Eye-One (a combination costing several times as much) the results were very close. With some of the desert images I used for the test, for example, I preferred the mid-tone color rendition of the PrintFIX PRO output and in other cases I preferred the color preservation in the shadows of ProfileMaker. That is quite a tribute to PrintFIX PRO, as it is the only sub $1000 package I've ever tested which can really go toe to toe with one of the high-end packages.

As always, we'd love to hear your thoughts and experiences with PrintFIX PRO or other profiling solutions in our .





Eye-One Pro

DTP41 Series 2 Autoscan








Measuring Geometry

45º/0º - Dual Channel

 45º/0º, DIN 5033

 45º/0º, DIN 5033

 Reflection 45°/0° per ANSI/ISO 5-4 (IT2.17)

0°/45°per ANSI / ISO 5.4

Light Source

LED array

Tungsten, Type A

Tungsten, Type A

Gas Pressure @ 2850°K

Gas pressure tungsten @ 2850°K

Measurement Aperture

7 mm diameter illuminated; 4 mm diameter measured

4 mm

4.5 mm

1.8mm (.070 in) in scan direction x 2.5mm (.097 in) wide

3.2 mm

Warm-Up Time


Not Specified

Not Specified

None Not


Measurement Time

<1 second

1 - 2.5 second

Not Specified

Approx. 0.25 sec/patch (7mm patch)

< 2 seconds per 30 patch strip with Pathfinder, Integrated velocity feedback control system

Short-term Repeatability

DE*94 <= 0.01 with respect to the mean CIELab value of 10 measurements every second on white.

0.03 _E*CIELab (D50, 2°), mean value of 10 measurements every 10 s on white

DE*94 <= 0.1 (D50,2°), with respect to the mean CIELab value of 10 measurements every 3 seconds on white

0.2 _E max.; ±0.01 Dmax on white

0.2 DE*94 max.;±0.01 Dmax. on white

Inter-Instrument Agreement

Average 0.4 DE*94, 1.0 Max DE*94 Measured on 12 BCRA tiles at 22°C

typically 0.3 _E*CIELAB (D50, 2°), average based on 12 BCRA tiles maximally 0.8 _E*CIELAB (D50, 2°) on 12 BCRA tiles

Average 0.4 DE*94, max. 1.0 DE*94 (Deviation from GretagMacbeth manufacturing standard at 23°C for single measurement mode on 12 BCRA tiles (D50,2°)

0.3 _E cmc avg. typical (avg. based on 12 BCRA tiles)

<0.3 DE*94 average <0.6 DE*94 maximum

Output Function

X Y Z CIE L*a*b*

CIE-XYZ, CIE-xyY, CIE-L*a*b*, CIE-L* C*h*(a*b*), CIE-L*u*v*, CIE-L*C*h*(u*v*), LABmg, LCHmg, HunterLab, RxRyRz

Luminance (cd/m2) Chromaticity coord. x,y (CIE 1931)




D50 CIE 2º, 1931 standard observer D65 CIE 10º, 1964 standard observer

D50, D65, A, C, D30...D300, F1...F12 2° & 10° Standard Observers


A, C, D50, D55, D65, D75, F2, F7, F11 & F12CIE 2° & 10° Standard Observers


Communication Interface

USB 2.0 Full Speed


USB 1.1

RS-232, USB


Power Requirements


90 to 270 V AC, 47 to 63 Hz

USB Powered

12v DC, Universal 100–240 VAC; 50–60 Hz adapter; 30W

Internal NiMH battery USB charged via powered USB port (rapid charge with optional accessory AC adapter)

Dimensions of Measuring Head Height: 55.4 mm

Width: 97.5 mm Length: 149.6 mm Weight: Unit: 131g Calibration base: 29g

Height: 63 mm Width: 65 mm Length: 155 mm Weight: 230 g

Height: 67 mm Width: 66 mm Length: 151 mm Weight: 185 g

Height: 88 mm Width: 184 mm Length: 114 mm Weight: 890 g

Height: 61 mm Width: 61 mm Length: 132 mm Weight: 258 g

Environmental Requirements

Operating Temperature: +5º- +40º C Relative Humidity: max 85%, noncondensing



"+10° (50°F) to +40°C (104°F) operating 30% to 85% RH non condensing"

"+10°C (50°F) to 35°C (104°F); 30% to 85% RH (noncondensing)

Comparison specs courtesy of DataColor/ColorVision.
